Ravel

Ravel Electronics Pvt. Ltd. is a renowned Indian manufacturer of advanced fire alarm control panels and detection systems. Founded with the vision to provide reliable, high-performance fire safety products, Ravel specializes in both conventional and addressable fire alarm panels, detectors, modules, and notification devices. The brand is recognized for its robust design, global certifications (including UL and ISO 9001), and ability to deliver tailored fire safety solutions that meet international safety standards.

Key Strengths:

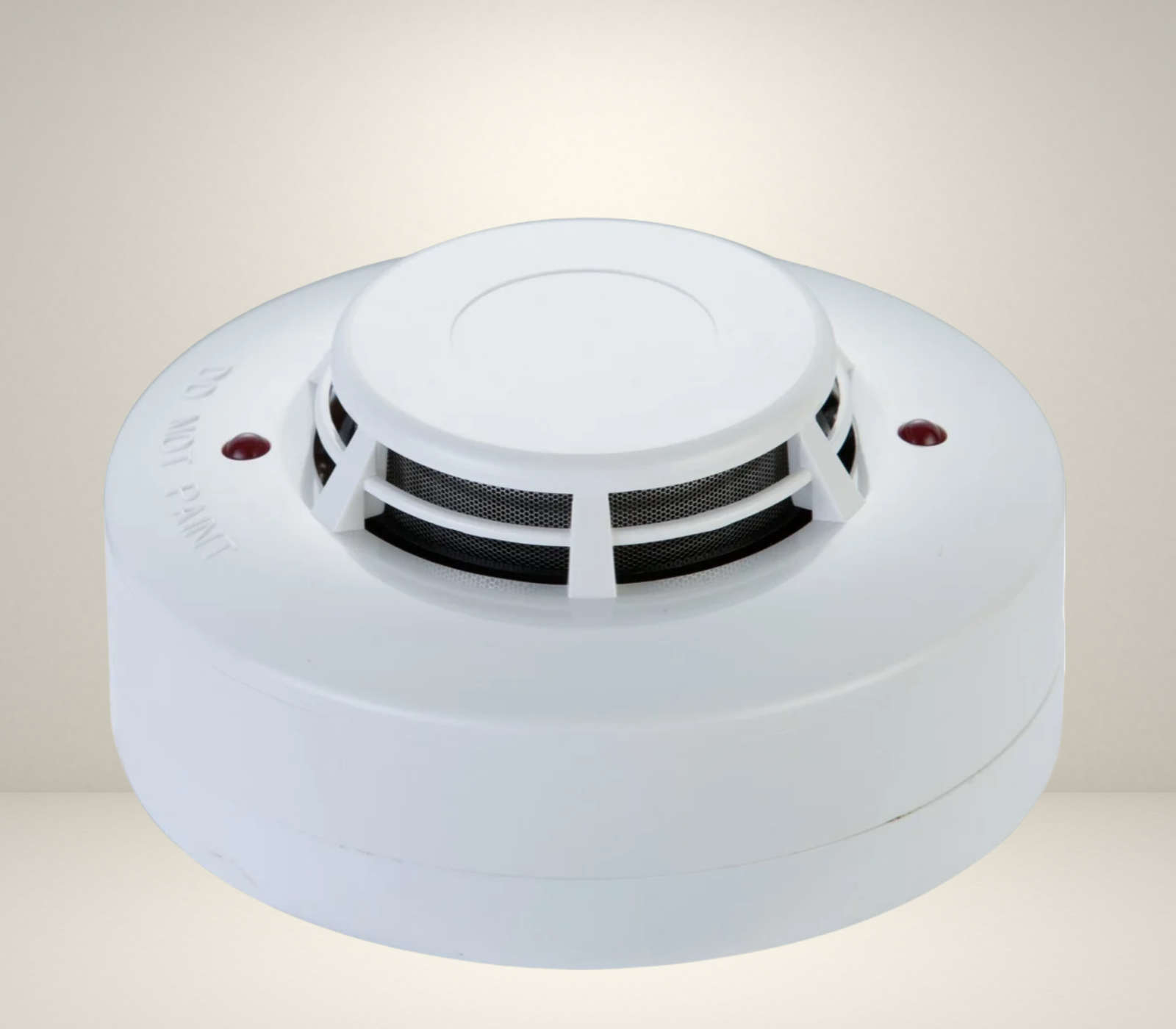

Addressable Heat Detector (RE-317D HL)

The RE-317D HL Addressable Heat Detector provides reliable heat-based fire detection for addressable fire alarm systems. It enables accurate identification of alarm locations, ensuring quick response and easy system management. Ideal for areas where heat detection is preferred over smoke detection.

  • Material: Plastic
  • Startup Time: 10 sec
  • Operating Temperature: -10°C to 50°C
  • Relay Outputs: Alarm Relay
  • Wireless Frequency: 50 Hz
  • Control Keys: Evacuate
  • Fire Resistance: Yes
  • Model: RE-317D
Addressable Heat Detector RE-317D HL

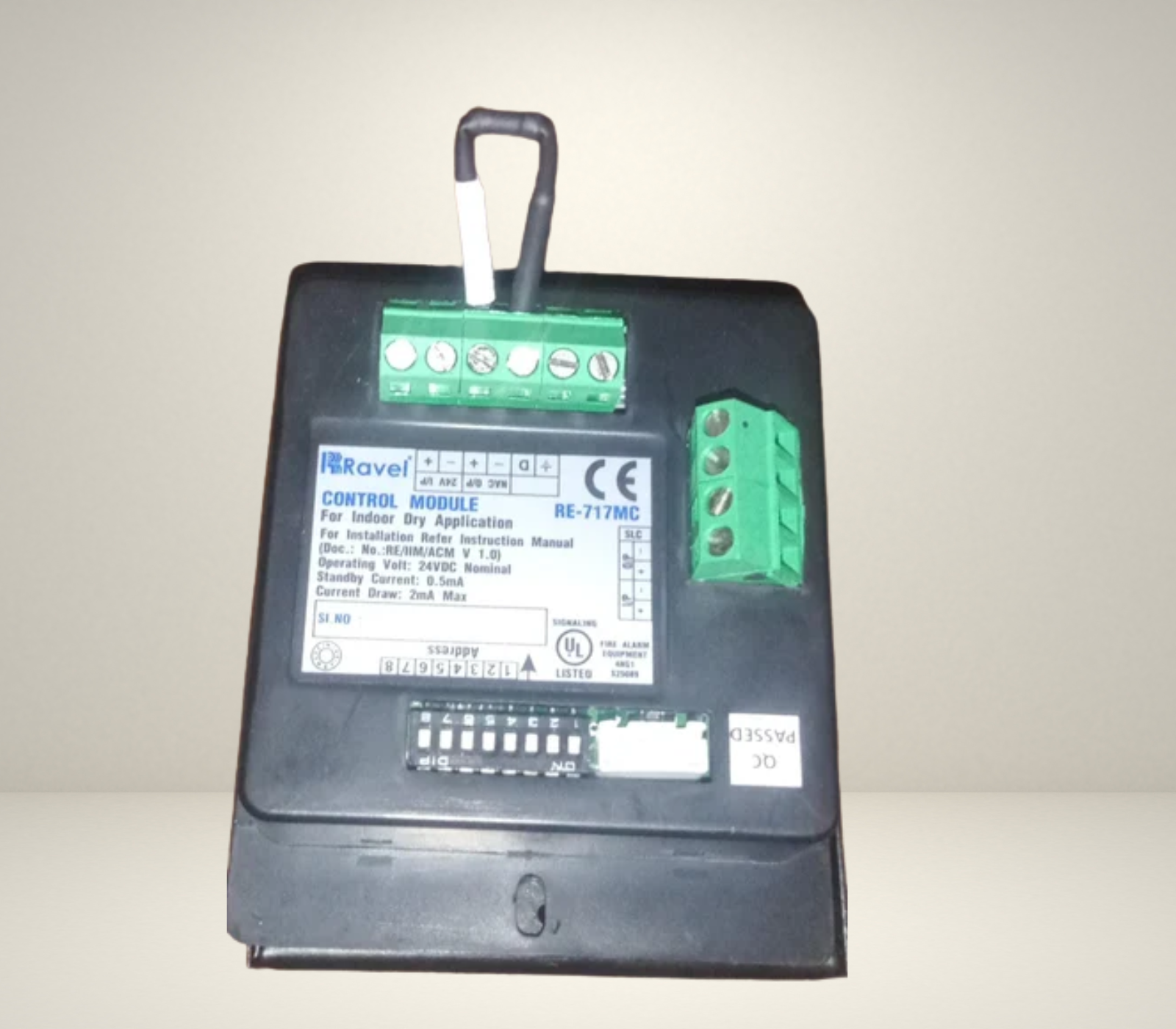

Control Module (RE-717MC)

The RE-717MC Control Module interfaces external devices with an addressable fire alarm system, enabling reliable control and monitoring of equipment during fire events with precise addressable identification.

  • Usage/Application: Office
  • Model Name/Number: RE-717MC
  • Voltage: 240 V
  • Frequency: 50 Hz
  • Number of Phases: Single
  • Current: 0.7 mA
Control Module (RE-717MC)

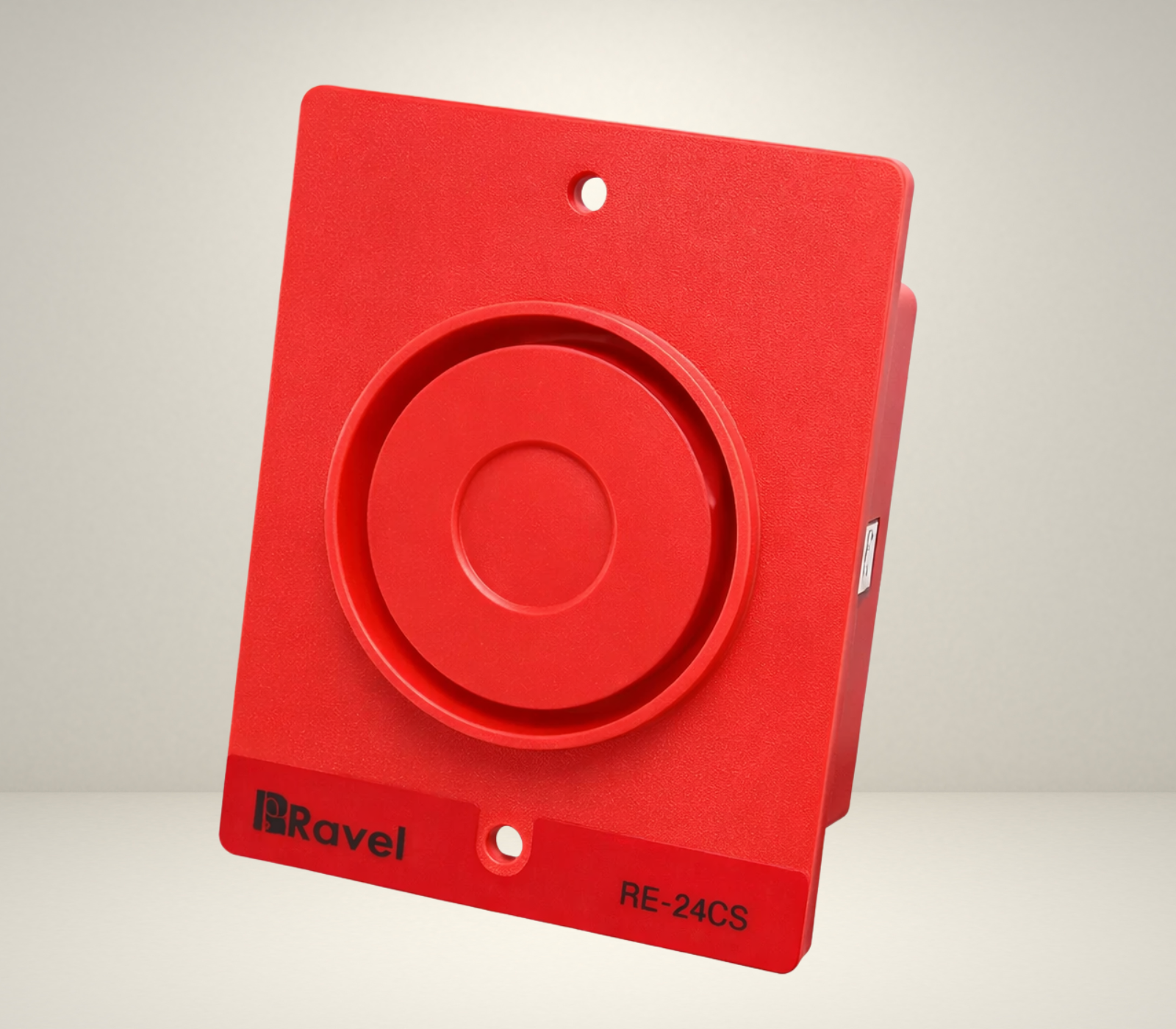

Hooter Conventional (RE-24CS)

The RE-24CS Conventional Hooter provides loud and clear audible alerts during fire emergencies, ensuring quick occupant awareness and evacuation in conventional fire alarm systems.

  • Output Power: 0.025 HP
  • Brand: Ravel
  • Operating Voltage: 240 V
  • Color: Red
  • Model Name/Number: RE-24CS
  • Frequency: 50 Hz
Hooter Conventional (RE-24CS)

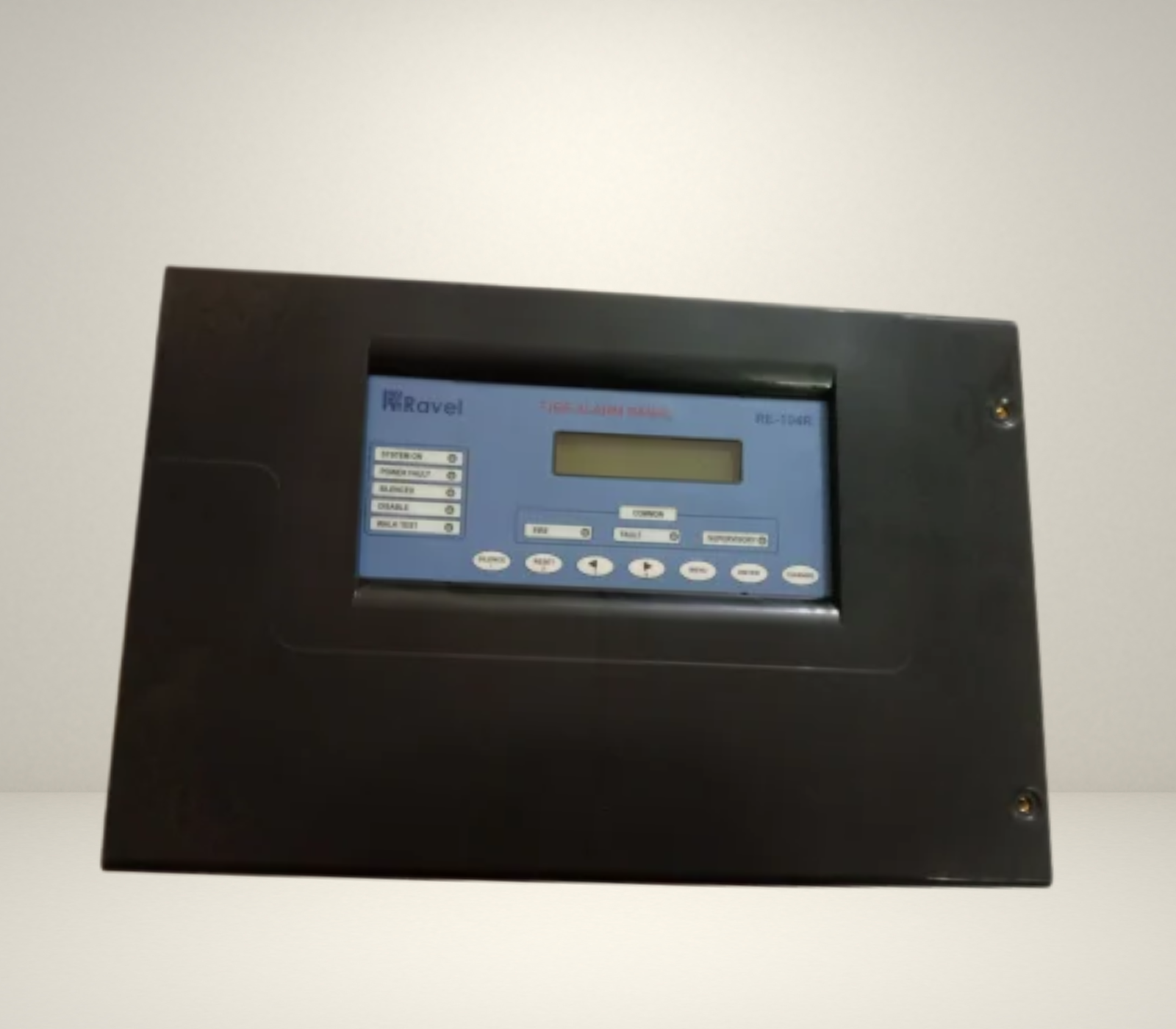

Zone Fire Alarm Panel (RE-104)

The RE-104 4 Zone Fire Alarm Panel is a reliable conventional fire alarm control panel designed for small commercial and industrial buildings, offering stable monitoring and clear alarm indication.

  • Type: Addressable
  • Display Type: LCD
  • Frequency: 50 Hz
  • Fire Resistance: Yes
  • Model: RE-104
  • Brand: Ravel
Zone Fire Alarm Panel (RE-104)

8 Zone Fire Alarm Panel (RE-2558)

The RE-2558 8 Zone Fire Alarm Panel is designed for medium-sized commercial and industrial buildings, supporting accurate zone identification and effective fire monitoring.

  • Type: Addressable
  • Display Type: LCD
  • Phase: Single
  • Wireless Frequency: 50 Hz
  • Model: RE-2558
  • Brand: Ravel
8 Zone Fire Alarm Panel RE-2558

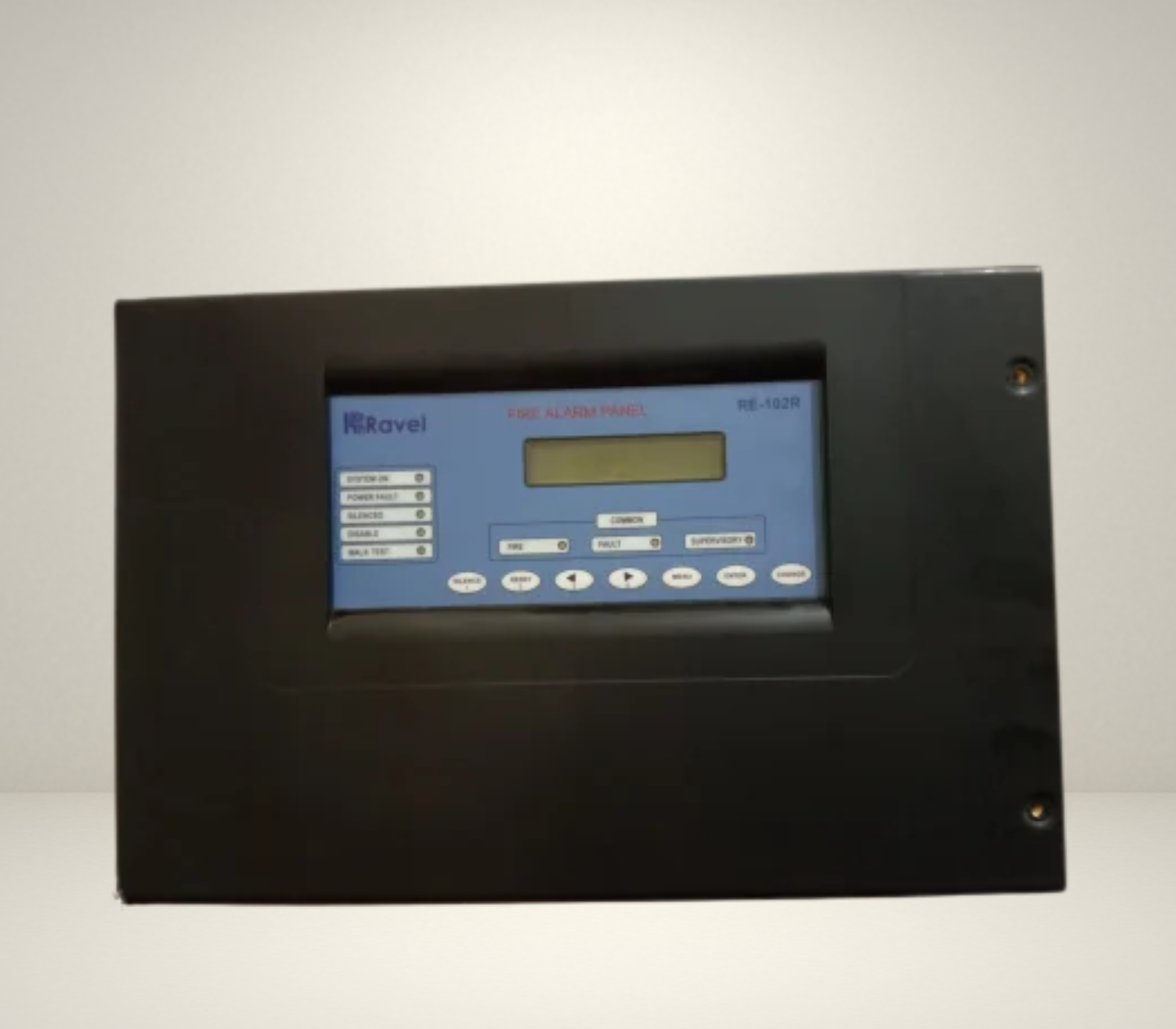

Conventional Fire Alarm Panel (RE-102R - 2 Zones)

The RE-102R 2 Zone Conventional Fire Alarm Panel provides dependable fire detection for small commercial and industrial buildings with simple operation and clear alarm indication.

  • Type: Addressable
  • Voltage: 240 V
  • Frequency: 50 Hz
  • Fire Resistance: Yes
  • Model: RE-102-2
  • Brand: Ravel
Conventional Fire Alarm Panel (RE-102R - 2 Zones)

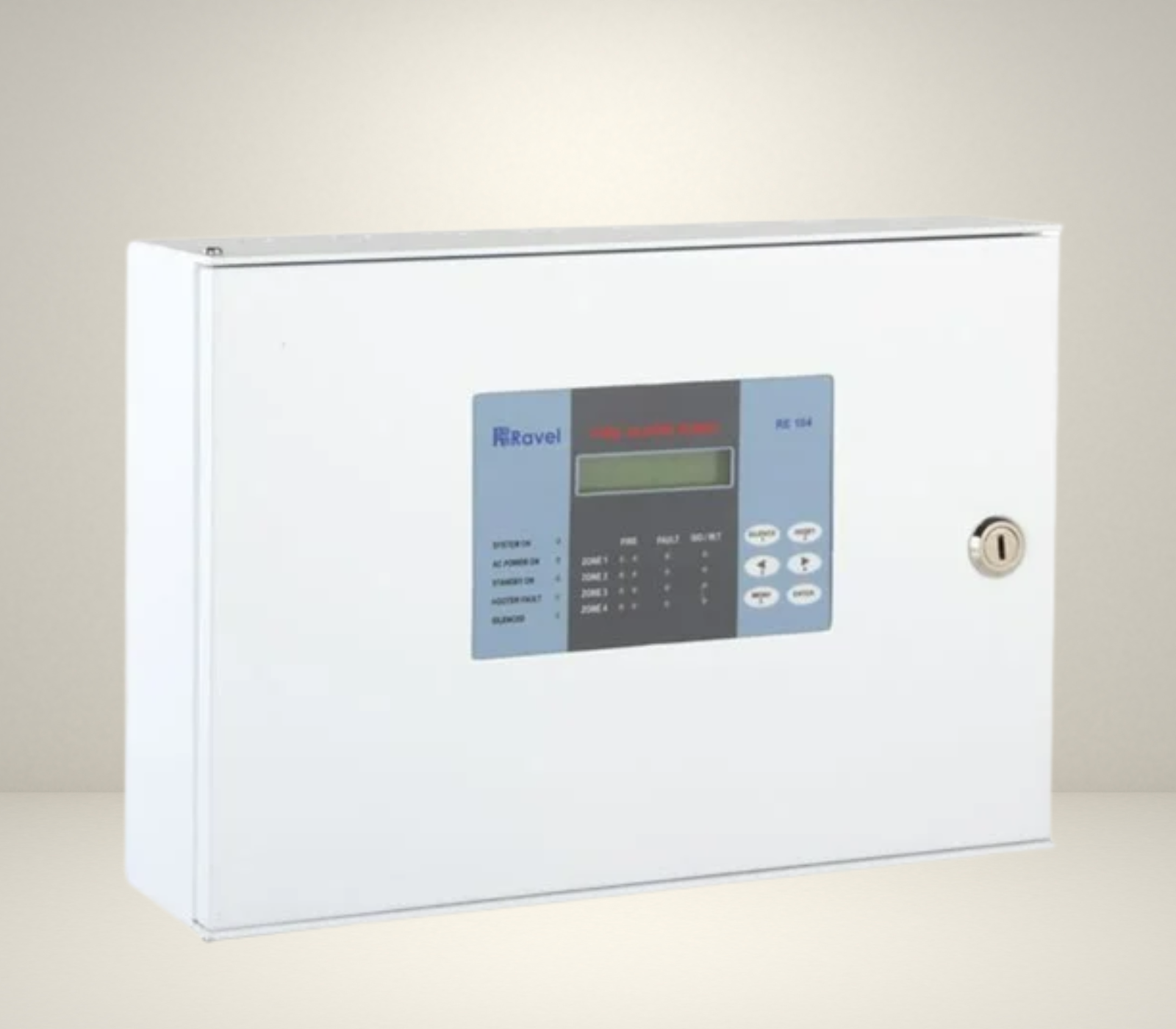

Fire Alarm Panel (RE-104R - 4 Zone)

The RE-104R 4 Zone Fire Alarm Panel is designed for reliable fire detection in small to medium-sized buildings, providing effective monitoring and clear zone identification.

  • Type: Addressable
  • Relay Outputs: Alarm Relay
  • Wireless Frequency: 50 Hz
  • Phase: Single
  • Fire Resistance: Yes
  • Model: RE-104
  • Brand: Ravel
Fire Alarm Panel (RE-104R - 4 Zone)

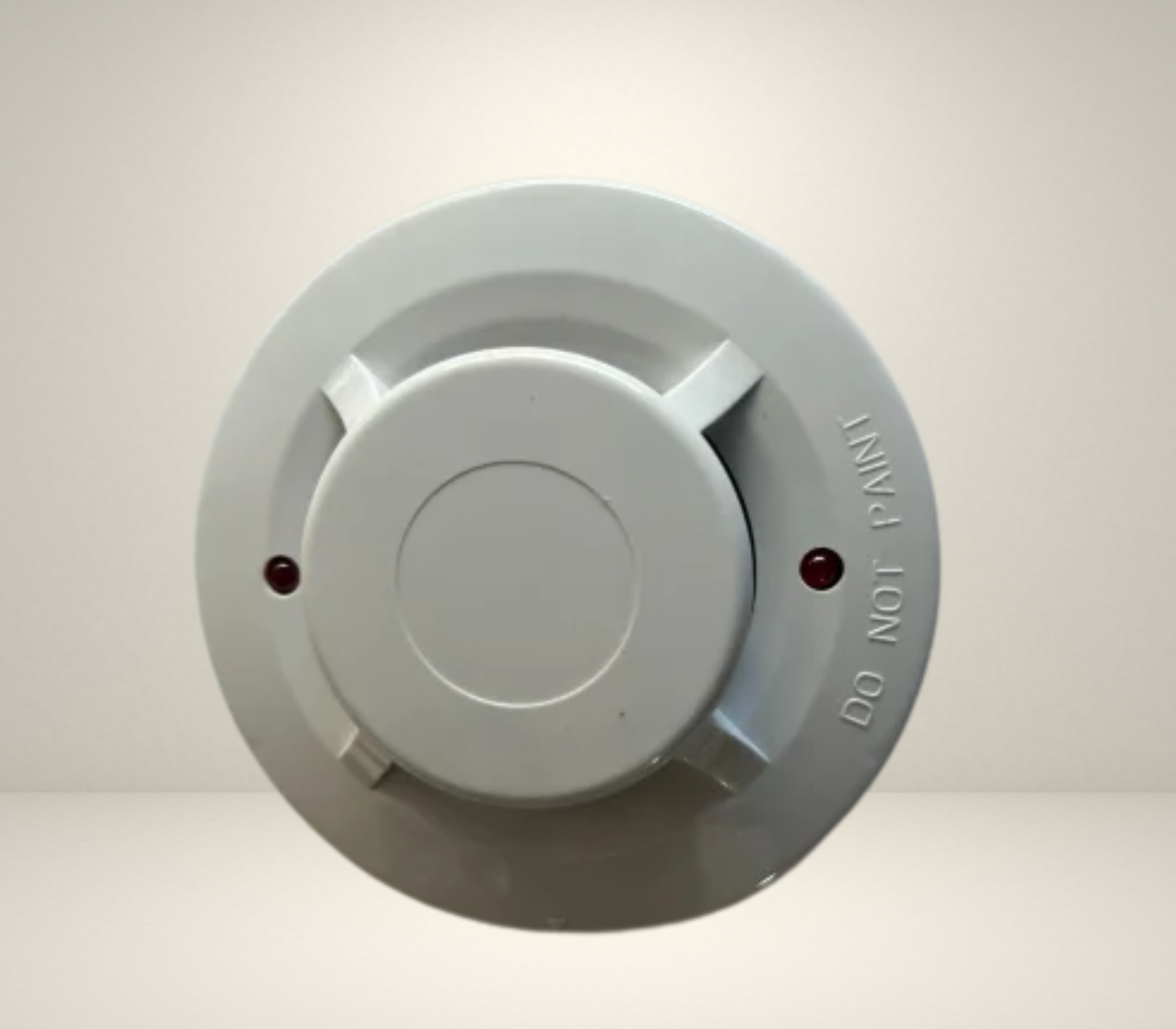

Moniti Heat Detector (RE-337H)

The RE-337H Moniti Heat Detector provides reliable heat-based fire detection in environments where smoke detectors are not suitable, ensuring timely fire alerts.

  • Startup Time: 10 sec
  • Operating Temperature: -10°C to 50°C
  • Relay Outputs: Supervisory Relay
  • Operating Voltage: 28 VDC
  • Control Keys: System Reset
  • Reset Voltage: Less than 5V
  • Model: RE-337H
Moniti Heat Detector RE-337H

Addressable Manual Call Point (RE-737M)

The RE-737M Addressable Manual Call Point enables manual activation of the fire alarm during emergencies, providing precise location identification for fast response.

  • Brand: Ravel
  • Relay Outputs: Alarm Relay
  • Usage/Application: Fire Alarm System
  • Operating Temperature: 0 to 49°C
  • Relative Humidity: 93% non-condensing
  • IP Rating: IP20
  • Alarm Current: 2.5 mA
  • Storage Temperature: 0 to 60°C
  • Dimension: 86 x 86 x 50 mm
  • Model: RE-737M
Addressable Manual Call Point RE-737M

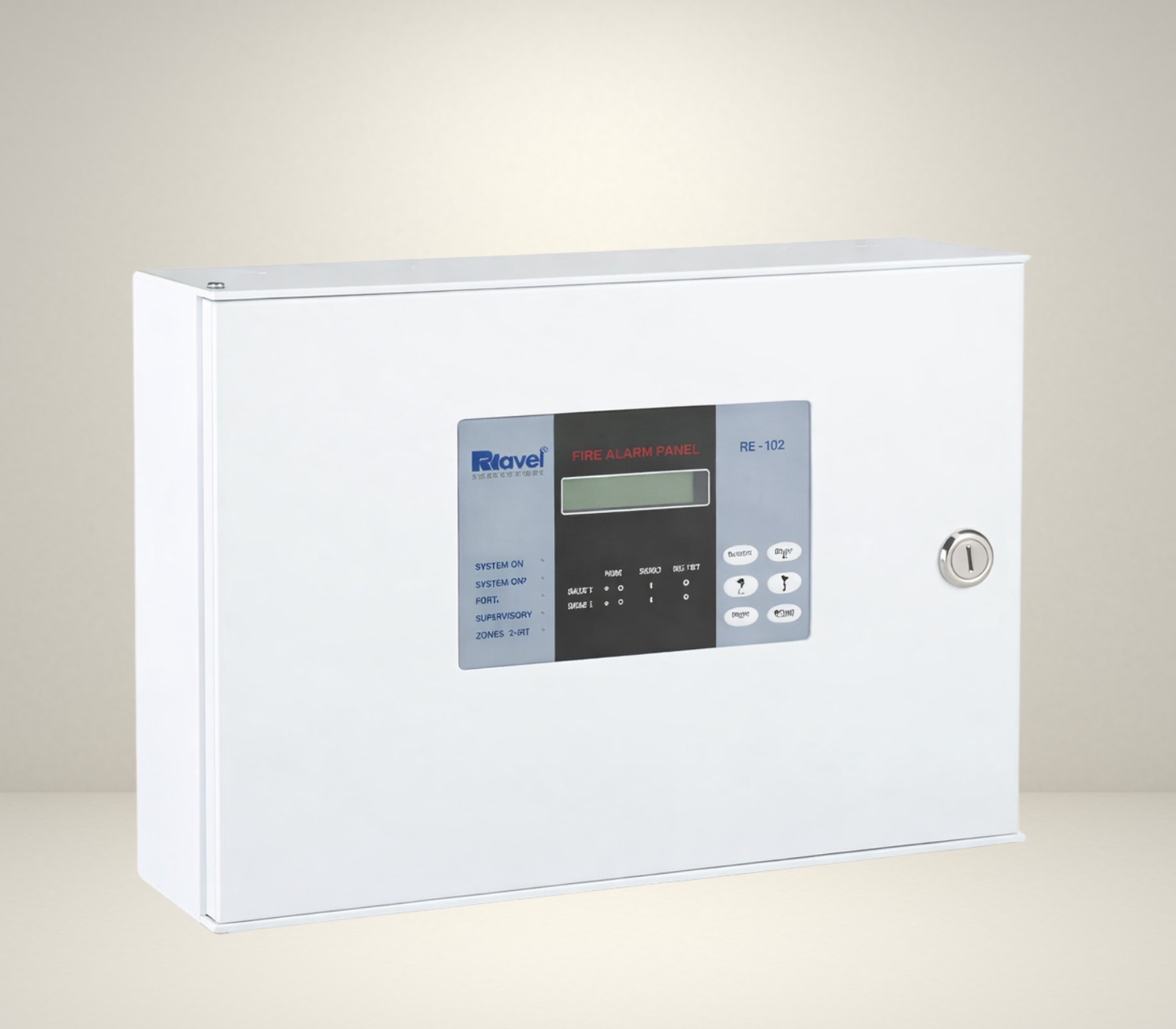

Fire Alarm Systems

Fire Alarm Systems detect fire at an early stage and alert occupants through audible and visual alarms, ensuring quick response and safe evacuation while minimizing loss of life and property.

  • Type: Addressable
  • Usage/Application: Office, Industrial, Commercial
  • Relay Outputs: Alarm Relay, Trouble Relay, Supervisory Relay
  • System Components: Fire Alarm Control Panel
  • Color: White
  • Brand: Ravel
  • Country of Origin: Made in India
Fire Alarm Systems
